Power Supplies - Analog Discovery

This instrument lets you enable the device power supplies. See Power Supplies for more information.

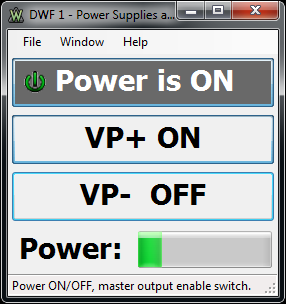

• Power is ON/OFF: is the master ON/OFF switch for the power supplies.
• Positive/Negative: are the enable switches for each supply.
  • ON is shown when the master switch is on and the supply is also enabled
  • OFF is shown when the supply is not enabled
  • RDY is shown when the supply is enabled but the master switch is OFF
• Power: shows the consumption of the two power supplies, form zero up to the maximum allowed level
